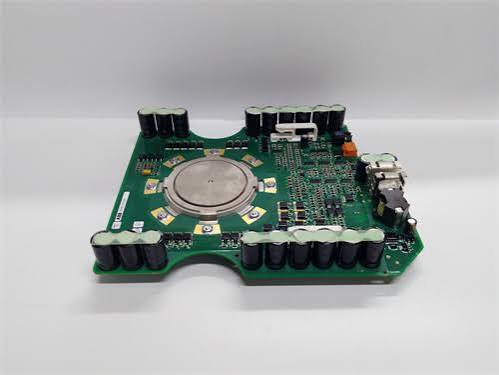

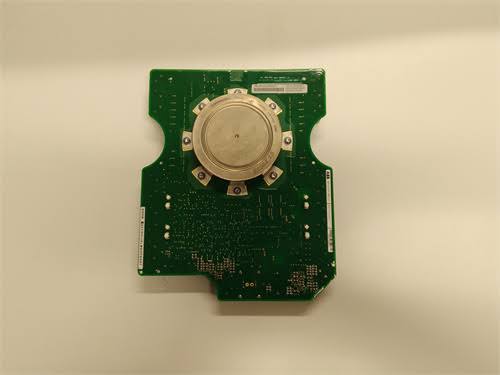

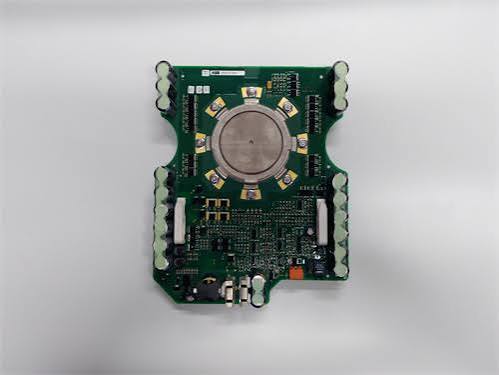

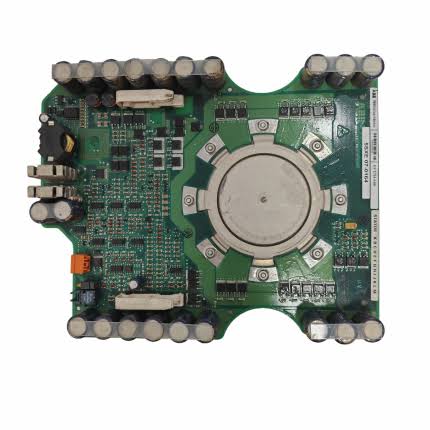

3BHE02445R0101 GVC714A101 is an ABB medium voltage variable frequency matching IGCT gate high voltage control board responsible for driving signal output and status monitoring of high-power devices. It is the core driving unit of the high voltage converter and is adapted to high-power electrical energy conversion equipment

Product application areas

Medium voltage high-power variable frequency drive system for metallurgical rolling mill

High voltage speed regulation device for large-scale mine hoist

Medium voltage frequency conversion transformation of fan and water pump in thermal power plant

High voltage frequency conversion system for large-scale chemical compressors

High power pump unit converter equipment for oil and gas transportation

Traction inverter device for urban rail transit

Wind turbine high-power converter power unit control

Ship Electric Propulsion High Voltage Variable Frequency System

Cement kiln main drive medium pressure drive equipment

Static reactive power compensation power unit for power grid

Product Features

Fiber optic communication signal transmission achieves high and low voltage isolation and strong anti-interference ability

Real time acquisition of device working status by integrated IGCT device monitoring circuit

Built in short-circuit, overcurrent, and overheat multiple protections to prevent damage to power devices

Onboard independent driving power supply can output high current pulses to achieve fast switching

Industrial reinforced circuit board resistant to vibration and suitable for harsh working conditions of high-power converter cabinets

This board receives instructions from the main control and outputs gate drive signals to accurately control the on/off of IGCT while providing feedback on device operation status to ensure the safe and stable output of electrical energy from high-voltage and high-power converters
