Products Description

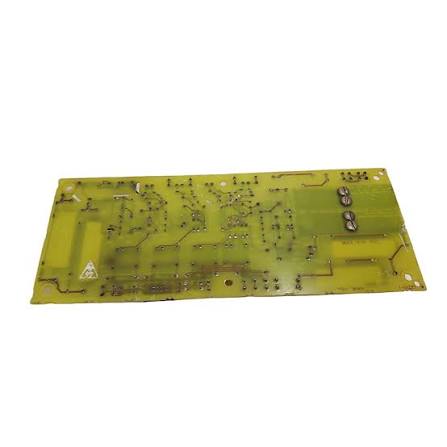

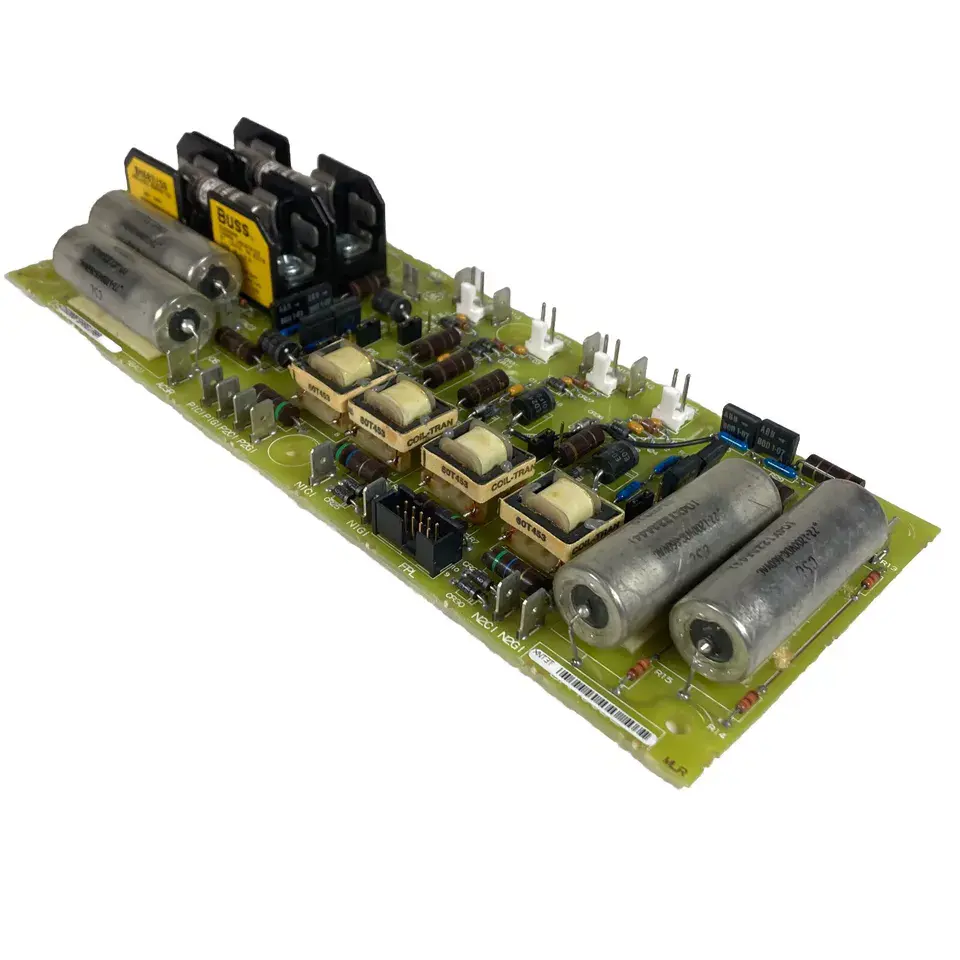

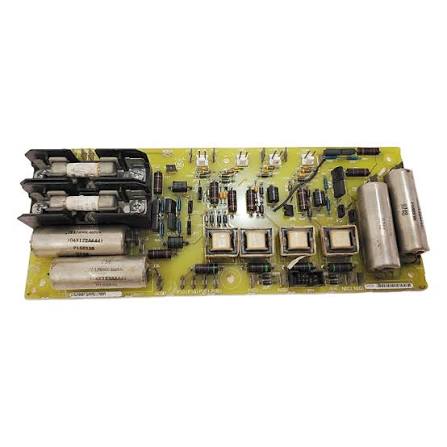

DS200DSPCH1A is a PC board equipped with a high-speed DSP processor for the GE Mark V turbine control system, responsible for real-time operation and closed-loop regulation of the unit. It is the core computing board of the turbine control cabinet, suitable for various high-power power equipment self-control scenarios
Product application areas
Control system for gas turbine generator set
Steam turbine thermal power generation control system
Signal operation control of power station excitation system
High power inverter drive control equipment
Industrial dynamometer dynamic adjustment system
Uninterruptible Power Supply Power Control System
Active power filter device control system
Main control system of wind turbine unit
Control of high-power transmission equipment in metallurgy
Speed control system for large-scale chemical power units
Product Features
Equipped with a dedicated DSP chip to perform real-time control algorithm calculations at high speed
Comes with an extended local IO interface that can directly interface with various control signals
Onboard status indicator light and reset button facilitate on-site debugging and maintenance
Equipped with dual channel serial communication and high-speed data exchange on the system backplane
Industrial coated circuit boards are resistant to vibration, high and low temperatures, and suitable for complex working conditions in power plants
This board relies on powerful data processing capabilities to complete various control logic operations of the turbine unit, ensuring stable start stop and speed regulation of power equipment. It is an indispensable core component of industrial turbine control systems
